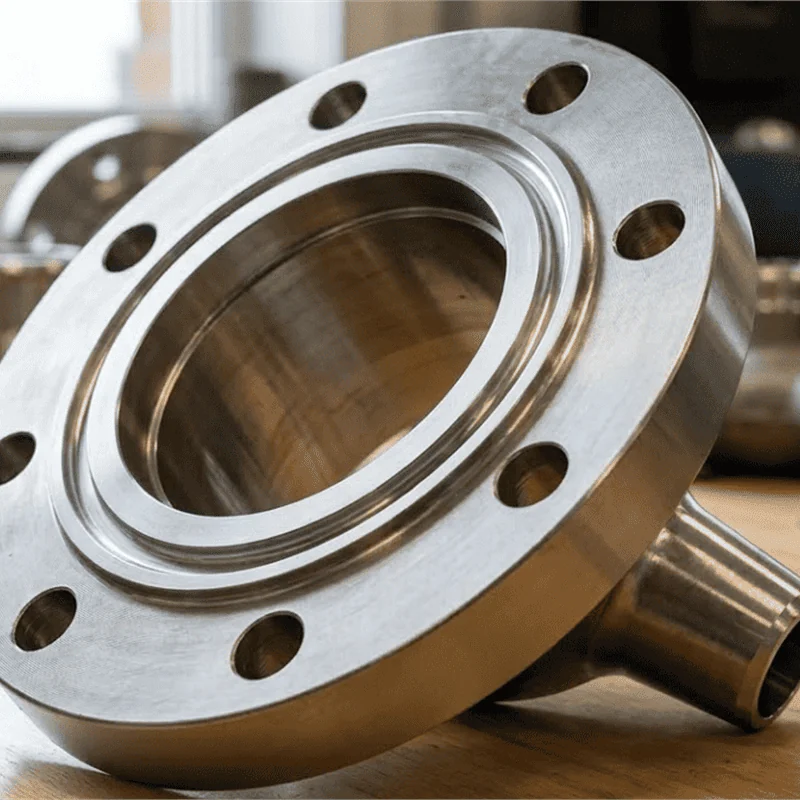

Incoloy 825 (UNS N08825) Ring Type Joint (RTJ) Flange
The Incoloy 825 (UNS N08825) Ring Type Joint (RTJ) Flange is a titanium-stabilized fully austenitic nickel-iron-chromium alloy. It is specifically engineered to provide exceptional resistance to both reducing and oxidizing environments, such as sulfuric and phosphoric acids. The addition of molybdenum and copper gives it superb resistance to pitting and crevice corrosion.
- Parameter
- Details
- Product Name
- Incoloy 825 (UNS N08825) Ring Type Joint Flange
- Type
- Flange, Ring Type Joint (RTJ)
- Size
- 1/2" - 48" (DN15 - DN1200) (Customizable)
- Pressure Class
- Class 150 - Class 2500 (PN16 - PN420), API 6A 2000 - 15000 PSI
- Standard
- ASME/ANSI B16.5, ASME B16.47, EN 1092-1, API 6A, DIN, etc.
